Downloads TAP Modular Pre-Amp Manual (MS Word) |
|
|
Kit Assembly Manual (MS Word - 120K) |
|
|

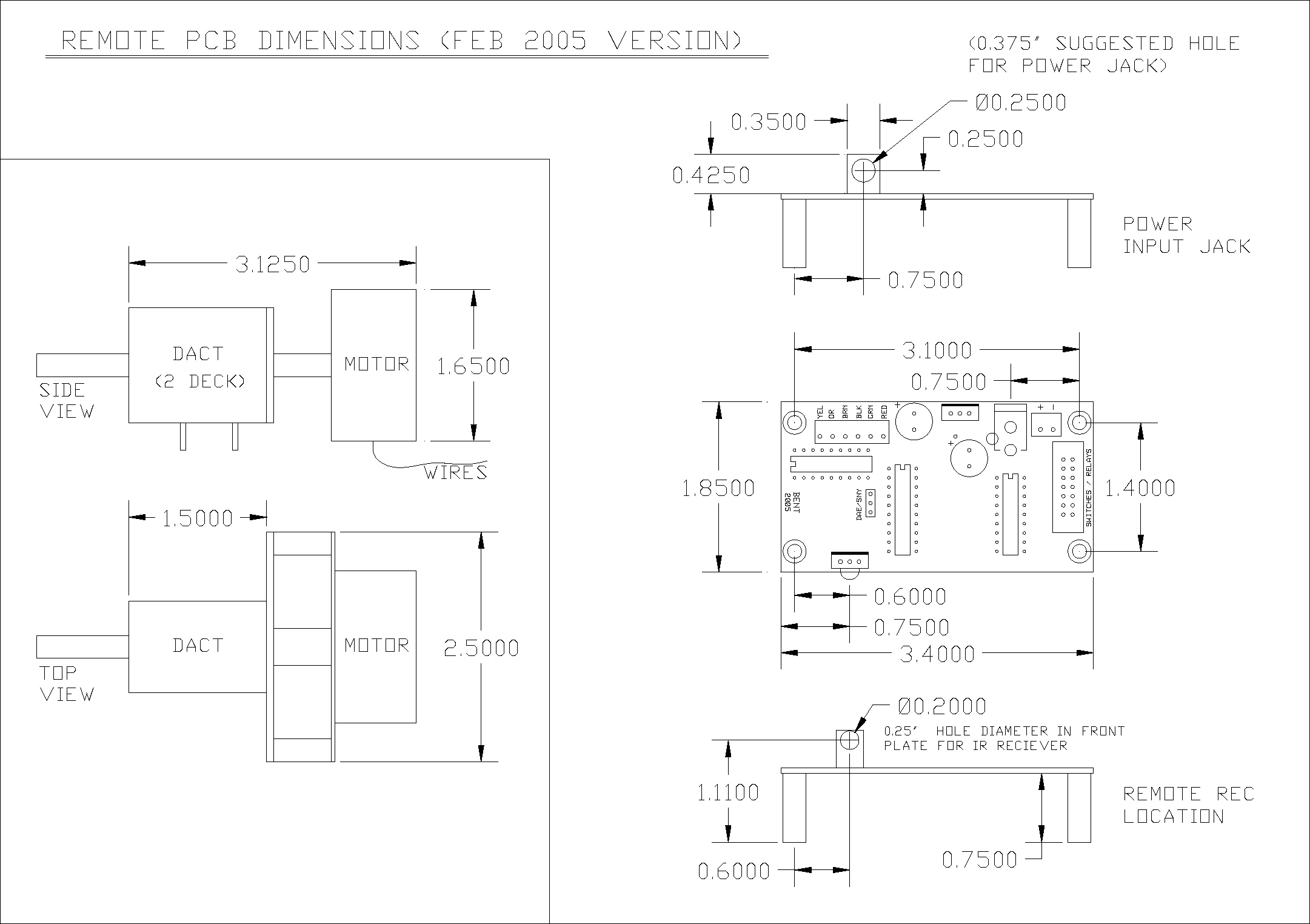

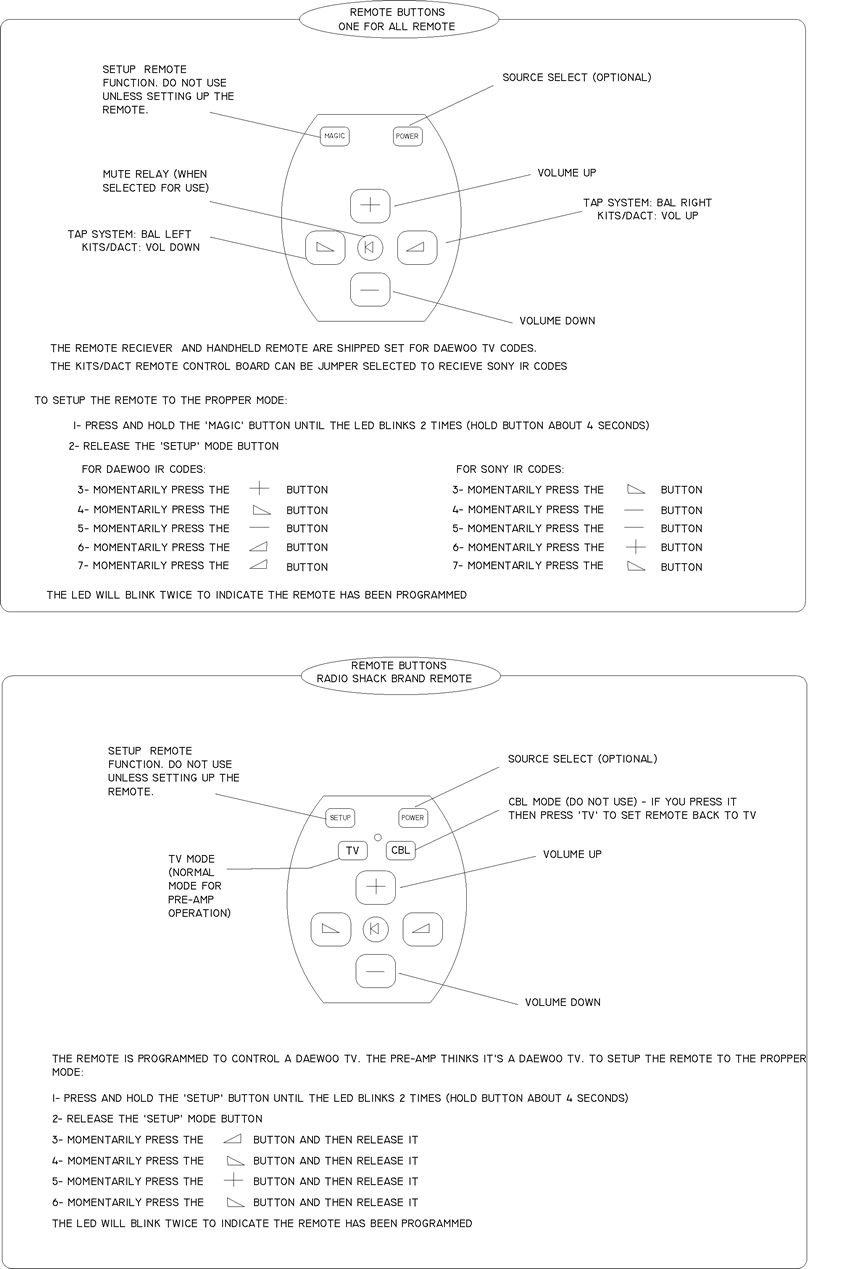

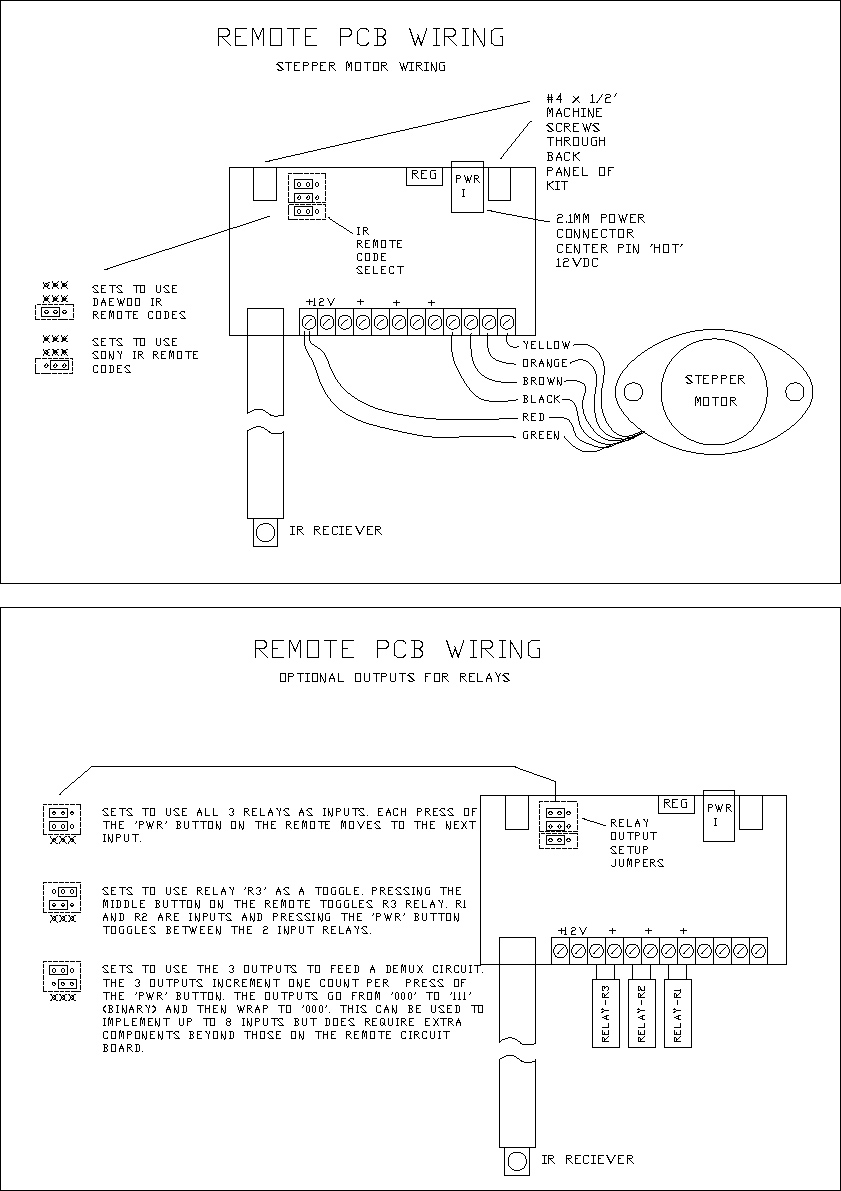

Remote Control Info |
|
|
TX102 MKIII PRIMARY WIRING The latest rev of TX102 (the MK III) has changed the primary wiring scheme to an earlier system. The drawing here shows this wiring. Note that the kit docs below are not correct for primary wiring but all other wiring is fine. Those files will be changed as time allows. |
|
|
LO410 LINE OUTPUT TRANSFORMER WIRING This drawing shows the wiring of the LO410 Line output transformer. The LO410 is typically ised in a NOH kit to have it's input side wired to the XLR output of the pre-amp and the output side of the LO410 wired to an RCA Jack - allowing for the XLR output to be use at the same time as the RCA output. Most of the time this is only used for a main amp connection via XLR and a subwoofer output from the pre-amp via rca. |
|
|
Kit Documentation The Files Below are a series of hi-res jpeg photos showing the kit assembly process. Right Click to grab the files. These can also be viewed from the Kit Assembly page. |
|
|
The files below are downloads of each Schematic Drawing and Wiring diagram that would be used with the kit instructions and pictures (above). Each kit builder has these drawingings created specifically for your kit configuration. As these are created we'll post the additional versions here. Please keep in mind that because these are kits you can build them with any circuit you choose inside. We encorage experimentation with the design and grounding layout of systems and hope you'll share your reslults with us and others at the Harmonicdiscord Bent Audio Forum One RCA Input / RCA Output Version - Small Case
|
|
|
|
|
|
|
|
|
|
|
|
2 RCA + 1 XLR Inputs / RCA and XLR Output Version - Large Case |
|
|
|
|
|
|
|
|
|
